ASV RT-135 Posi-Track
The new industry benchmark for size, power and performance.
Quick Specs
Operating Weight
5477 kg
Tipping Load
4536 kg
Ground Pressure
4.7 psi
Engine Power
132 hp
The new industry benchmark for size, power and performance.
Our most powerful MAX-Series compact track loader is built to handle tough excavation, and other challenging applications within the aggregates, construction, landscaping and agriculture industries.
While ASV MAX-Series machines are purpose-built with the same technology as our full lineup of compact track loaders, they also feature a brand-new, next-generation cab and other features for a premium operator experience like never before.
POWER
A Cummins 3.8-litre turbocharged diesel engine powers the ASV RT-135, delivering 132-horsepower and 488Nm torque. This extreme power output is transferred to the terrain through direct-drive hydraulic motors, allowing the machine to easily move through its path on even the toughest, most demanding terrain.
PERFORMANCE
The RT-135 Posi-Track achieves superior performance over competitive machines.
With a massive rated operating capacity and exceptional tipping load, the RT-135 also features ASV’s patented Posi-Track® rubber-track suspension — well known for its smooth ride — and includes both suspended wheels and axles, allowing it to achieve faster speeds over all types of terrain.
The fully-flexible track and suspended wheels conform to the ground, ensuring maximum traction in the roughest conditions. The features, combined with the RT-135’s 381mm of ground clearance, allow the unit to work where others simply can’t.
COMFORT

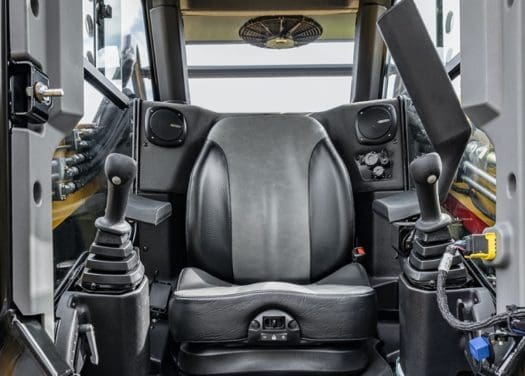

With a next-generation MAX-Series cab, the RT-135 features plenty of creature comforts that let operators work more comfortably for longer periods of time
More all-around space, improved ergonomics, an upgraded HVAC system for better circulation and defrosting, an all-weather pressurised cab for a cleaner operator environment, a colour touch screen display, heating, air conditioning, standard joystick controls, and a Bluetooth radio with USB.
SERVICEABILITY
The RT-135 gives operators easy access to the Cummins engine through a three-panel hood and tilting cooler arrangement.
This machine offers a hydraulic quick attach and a design that simplifies routine inspections of filters, oil and normal service items. The rearward tilting cab provides easy accessibility when further service is required.
Standard Features Comparison
SELECTABLE PATTERN JOYSTICK CONTROLS
ASV RT-135: | |
Bobcat T870: | |
Takeuchi TL12R2: | |
Case TV620B: |
5 COUPLER, SIMULTANEOUS HIGH / LOW FLOW
ASV RT-135: | |
Bobcat T870: | |
Takeuchi TL12R2: | |
Case TV620B: |
ALL CLEAR CAB SIDES
ASV RT-135: | |
Bobcat T870: | |
Takeuchi TL12R2: | |
Case TV620B: |
MACHINE SPECIFICATIONS
OPERATIONS
Loader Arms: | Radial |
Operating Weight: | 5477 kg |
Rated Op Capacity @ 35%: | 1588 kg |
Ground Pressure: | 32.4 kPa / 4.7 psi |
Engine Power: | 98.4 kW / 132 hp |
Tipping Load: | 4536 kg |
Max Travel Speed (1st Speed): | 9.7 km/h |
Max Travel Speed (2nd Speed): | 16 km/h |
ENGINE
Features: | Diesel 4-cylinder, turbo charged Cummins QSF3.8. |
Engine Power: | 98.4 kW / 132 hp |
Cooling System: | Temperature-controlled, variable speed and operator time-selectable, hydraulically-driven, auto-reversing fan and coolant/anti-freeze-filled radiator. |
Intake Air Cleaner: | Three-stage. |
Auto Idle: | Standard feature. |
Emission Controls: | Meets all U.S. EPA Tier 4 final standards. |
Torque Peak: | 488 Nm. |
DRIVE TRAIN
Track Type: | General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads. |
Drive System: | Two hydrostatic direct drive sprockets controlled by a single joystick. |
Track Drive Sprocket: | Elevated with low friction, replaceable sprocket rollers. |
Undercarriage Suspension: | Two independent torsion axles per undercarriage. |
Roller Wheels: | 24 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings. |
Track Width: | 457 mm |
Length of Track on Ground: | 1803 mm |
Ground Contact Area: | 1.65 m2 |
Front & Rear Roller Wheel Diameter: | 381 mm |
Middle Roller Wheel Diameter: | 254 mm |
DIMENSIONS
Full Length: | 3988 mm |
Arm Up Height: | 3175 mm |
Machine Height: | 2276 mm |
Machine Width: | 1930 mm |
Ground Clearance: | 381 mm |
AUXILIARY HYDRAULICS
Controls: | Intermittent via joystick button or continuous via console switch. High-flow is adjustable and loader/auxiliary sharing is adjustable via machine display. |
Couplers: | Push-to-connect quick couplers mounted on loader arms. Pressure relief valve on coupler block. |
Cooling System: | High efficiency side-by-side radiator and oil cooler. |
Pump Capacity: | 75.7 lpm (Low Flow) / 189 lpm (High Flow) |
System Pressure Max: | 22750 kPa (Low Flow) / 27993 kPa (High Flow) |
ELECTRICAL SYSTEM
Features: | Attachment Control kit, block heater. |
Outlets: | 1x 12V port inside operator station. |
Wiring: | Pre-wired for all factory-available accessories. |
Charging System: | 120 Amp Alternator |
Nominal Charge: | 12 V |
Battery: | 950 CCA |
OPERATOR STATION
Seat: | Adjustable contour vinyl mechanical seat with built-in operator presence switch, lap bar and 51mm wide seat belt, operator manual pouch. |
Loader Control: | Right-hand pilot electronic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. Loader speed is adjustable and selectable from ISO or H control pattern. |
Drive Control: | Left-hand pilot electronic joystick controls machine speed and direction. Track speed is adjustable, includes a Creep Mode and is selectable from ISO or H control pattern. |
Engine Speed: | Hand-operated foot throttle and foot throttle. |
Machine Display: | Engine RPM, engine oil pressure, hydraulic oil high temperature, engine coolant temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules, DEFlevel, Adjustable controls, Adjustable hydraulic flows. |
ROPS / FOPS: | ISO 3449 Level 1 (level 2 optional). |
Illumination: | 2 – Adjustable forward-facing LED lights 2 – Adjustable rear-facing LED lights 1 – Interior light 2 – LED side lights. |
Convenience: | 12 V power port. |
Standard Features: | Horn, backup alarm, cup holder, phone holder, behind seat storage, rear view mirror, lapbar, roof escape hatch, roof panel & rear cab windows. Adjustable joystick & arm rest positions, adjustable directional & air flow HVAC vents, radio with bluetooth & USB, frameless front door, attachment control kit, wiper/washer, easy-off door. |
SERVICE CAPACITY
Fuel Tank: | 196.8 L |
Hydraulic Tank: | 83.3 L |
Engine Coolant: | 20.8 L |
Engine Oil (inc Filter): | 11.4 L |
PLEASE NOTE: Specifications and inclusions noted above are indicative approximates only, may vary depending on machine and attachment configuration, and are subject to change without notice. Operating weights listed include 75kg operator, full fuel and hydraulic tanks, and a USA GP bucket – variations in buckets, attachments and operators will result in adjusted operating weights. Warranty terms and conditions apply; enquire at your local dealer for full details.
