ASV Posi-Track Loaders

The Original Compact Track Loader ... and Still the Industry's #1

ASV RT-25 Posi-Track Loader
Operating Weight
1703 kg
Tipping Load
862 kg
Ground Pressure
3.1 psi
Engine Power
24.7 hp

full view

ASV RT-40 Posi-Track Loader
Operating Weight
1894 kg
Tipping Load
1206 kg
Ground Pressure
3.5 psi
Engine Power
37.5 hp

full view

ASV RT-50 Posi-Track Loader
Operating Weight
2427 kg
Tipping Load
1814 kg
Ground Pressure
3.1 psi
Engine Power
49.6 hp

full view

ASV RT-60 Posi-Track Loader
Operating Weight
2957 kg
Tipping Load
2072 kg
Ground Pressure
3.7 psi
Engine Power
60 hp

full view

ASV RT-60 2-Speed Posi-Track Loader
Operating Weight
3143 kg
Tipping Load
2463 kg
Ground Pressure
3.9 psi
Engine Power
60 hp

full view

ASV RT-65 Posi-Track Loader
Operating Weight
3393 kg
Tipping Load
2495 kg
Ground Pressure
4.2 psi
Engine Power
67 hp

full view

ASV VT-70 High Output Posi-Track Loader
Operating Weight
3465 kg
Tipping Load
3030 kg
Ground Pressure
4.5 psi
Engine Power
74.3 hp

full view

ASV RT-75 Posi-Track Loader
Operating Weight
4110 kg
Tipping Load
3564 kg
Ground Pressure
3.5 psi
Engine Power
74.0 hp

full view

ASV RT-75HD Posi-Track Loader
Operating Weight
4178 kg
Tipping Load
3629 kg
Ground Pressure
3.6 psi
Engine Power
74.0 hp

full view

ASV RT-120 Posi-Track Loader
Operating Weight
5110 kg
Tipping Load
4581 kg
Ground Pressure
4.4 psi
Engine Power
120.0 hp

full view

ASV RT-120 Forestry Posi-Track Loader
Operating Weight
5559 kg
Tipping Load
4853 kg
Ground Pressure
4.3 psi
Engine Power
120.0 hp

full view

ASV Posi-Track compact track loaders give you premium performance, better balance and higher ground clearance, so you can work more productively in a wider range of ground conditions.

ASV Posi-Track compact track loaders (also known as tracked skid steers) come in 10 size classes, plus a special Heavy-Duty configuration on the RT-75 and a Forestry configuration on the RT-120.

Every ASV Posi-Track machine is designed from the ground up to run on a unique and highly durable rubber track undercarriage, unlike most brands that re-configure wheeled skid-steer loaders to run on tracks.

Superior ride comfort. Climb slopes with ease. Lower maintenance costs. Higher ground clearance. Faster & more powerful. Work where other machines can’t. Feel the Posi-Track difference…

WHY CHOOSE AN ASV POSI-TRACK LOADER

As a world renowned expert in designing and producing premium, hard-working machinery, ASV gives operators the advantage they need to get more work done at every job site.

What sets ASV Posi-Track loaders apart from other loaders is something ASV invented: the unique Posi-Track undercarriage. ASV’s patented undercarriage technology is designed to give you more traction, speed and performance in any environment, plus reduced service and ownership costs.

The ASV brand has long been known for world-class compact track loaders. For more than thirty-five years, ASV has led the way with superior machine designs and innovations. Our undercarriage technology enables operators to be productive in conditions that often prevents other equipment from working at all. The unique rubber-on-rubber wheel-to-track contact points and fully suspended frames reduce wear and tear on the machine and track while also improving ride quality. A specialised platform provides owners and operators with increased traction, flotation, ground clearance, stability, and overall capability.

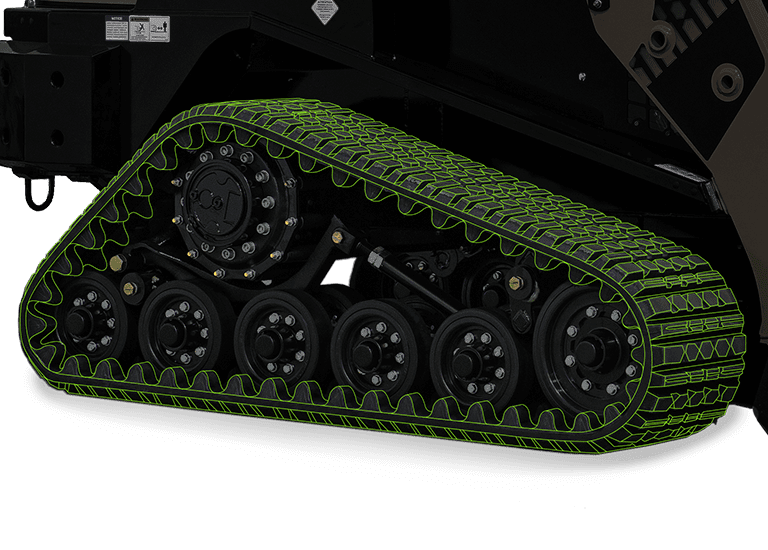

ASV-Positrack-Track-Technology

RUBBER TRACKS

The tracks used on ASV compact track loaders are unique—they don’t have a steel core. Instead, these patented ASV tracks feature rubber construction with embedded high-tensile poly-cords that run the length of the track to prevent the track from stretching and derailing.

The pliable cord allows the track to conform to the shape of the ground, improving traction. Unlike steel, it doesn’t break from continuous bending, it’s lighter, and it doesn’t rust. Better traction and long life come standard and the all-terrain, all-season tread allows you to stay working regardless of the weather.

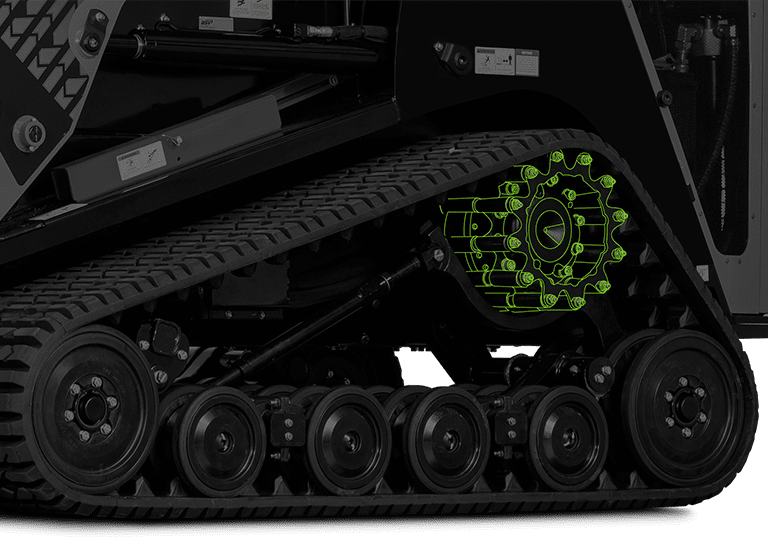

ASV-Positrack-Drive-System-Technology

DRIVE SYSTEM

ASV compact track loaders use an internal positive drive to efficiently transfer tractive effort from the power train to the rubber tracks. Independent drive motors turn sprockets that engage the drive lugs on the inside of the rubber tracks. The low-friction design maximizes power transfer, conserving engine power for other machine functions.

Wear between sprockets and track lugs is minimized through free-turning steel roller sleeves on the drive sprocket teeth. Wide sprockets—3 to 5 times wider than competitive designs—and an open support frame that sheds material, keep the sprockets lasting longer. When it is time to replace, the bolt-on rollers keep your costs below traditional non-serviceable designs.

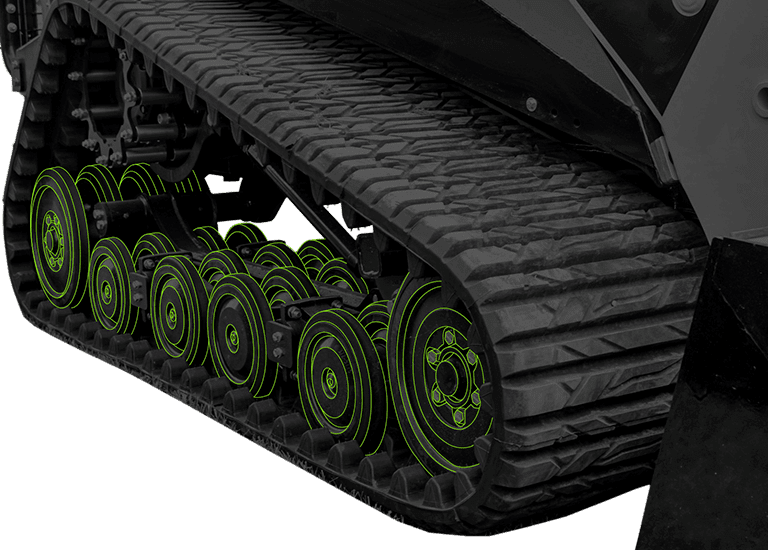

ASV-Positrack-Roller-Wheels-Technology

ROLLER WHEELS

ASV roller wheels (up to 48 rollers on our largest model) distribute weight evenly across a large ground contact area, minimizing ground pressure and increasing traction.

A revolutionary single-rail, open wheel design helps shed material, improving wheel and seal life over enclosed tub frames and saving you cleaning time.

The wheels are made of a durable UHMW polyethylene molded directly to the hub and coated with a final layer of rubber to provide the perfect balance of a strong center core and the needed track cushioning that results in premium ride and long life.

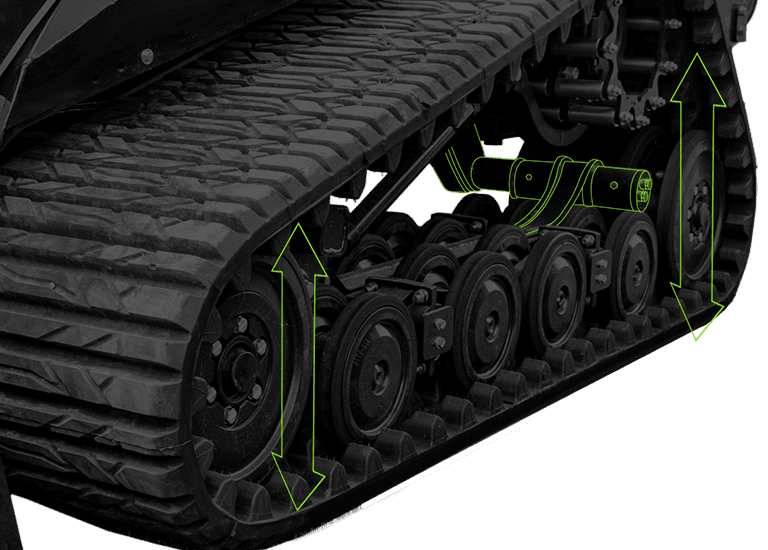

ASV-Positrack-Suspension-Technology

SUSPENSION

Undercarriages on ASV compact track loaders are mounted to torsion axles which suspend machine weight and allow controlled movement up and down.

The suspension on ASV compact track loaders improves stability and absorbs impacts for increased operator comfort and machine durability. This design also keeps the track on the ground to improve digging and maximize traction.

When combined with the machine’s superior balance and longest track base in the industry, this machine offers excellent grading capabilities.

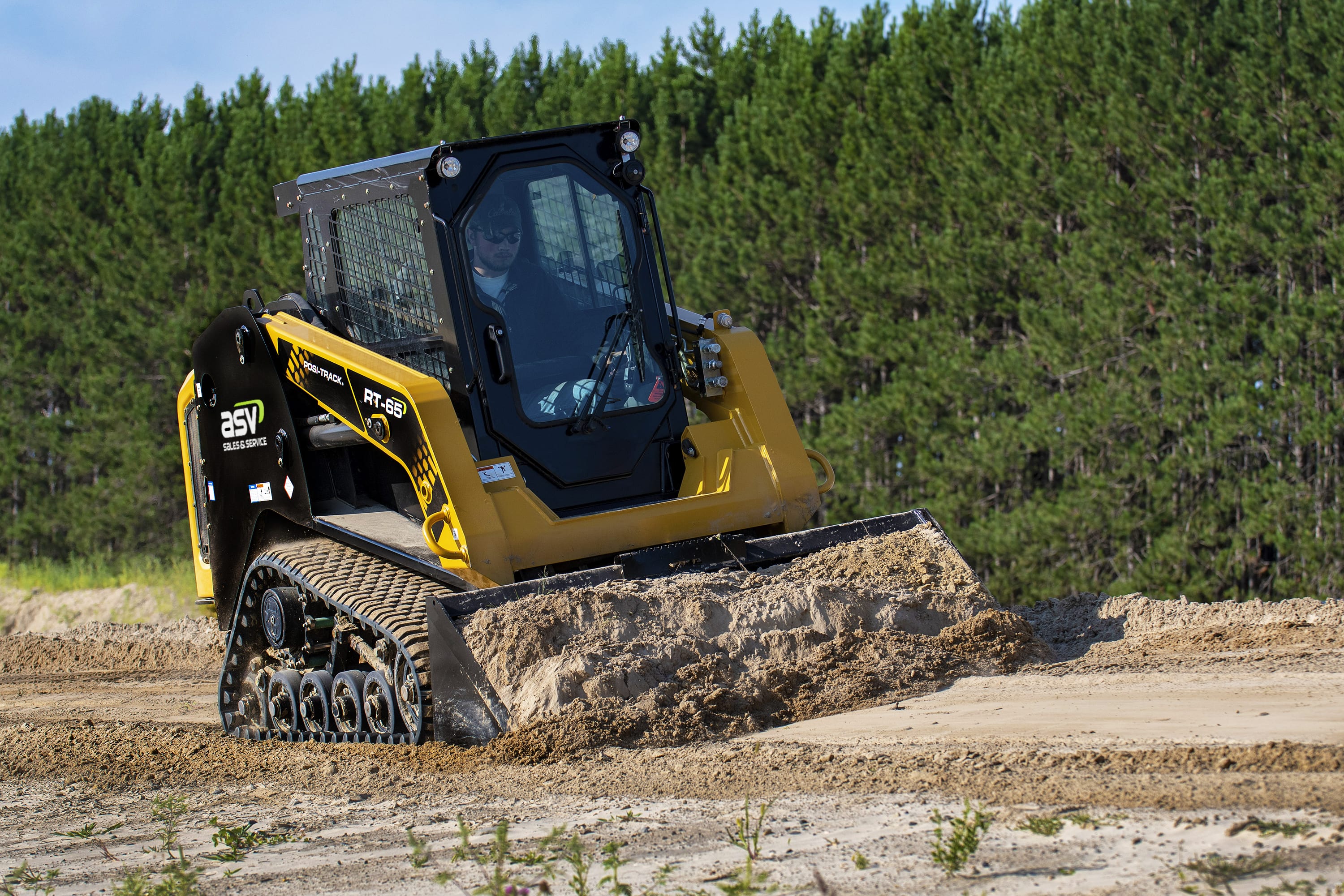

RT-65 Sideslope - ASV S&S Edit-min

WARRANTY

From concept to creation, the machines we manufacture are some of the best in the business.

They offer years of reliability, hard work and productivity—and we back that promise with an industry-leading warranty.

The warranty includes 2 years/2,000 hours of coverage for the full machine, including the tracks on compact track loaders and the industry’s first no-derailment guarantee.

Submit an Enquiry or Request a Quote



Please Note: All Positrack models above are available with optional galvanised plant trailer packages from our trailer supplier, Bonanza Trailers. Bonanza have branches in Perth, Newcastle and Sunshine Coast and deliver nationwide for low rates.
