DX27Z-7 Mini Excavator
New Size Class of DEVELON Mini Excavator
Quick Specs
Engine
Doosan / DN1.7
Power
24 hp
Weight - Cab
2800 kg
Max Dig Dept
2645 mm
New class of mini excavator
The 24.7 hp, 2.8t DX27Z-7 mini excavator provides a new size class within the DEVELON lineup. Featuring a zero tail swing design and a 1550 mm width, it can travel between homes on tight lot lines or work next to existing structures where other equipment doesn’t fit. Maneuverable and powerful, it can take on projects previously done using manual labor.
The DX27Z-7 features an increased, integrated counterweight to enhance digging and lifting performance, a backfill blade, and a rubber track undercarriage for superior flotation and traction. A long-arm option is available when you need more reach and dig depth.
Durability and efficiency with DEVELON’s standard rotating piping
The standard application of rotating piping in DEVELON’s mini excavators represents an advancement in design that enhances machine performance and durability.
This feature allows the hydraulic pipes to rotate with the machine, reducing the strain and potential damage to the hydraulic system during operation. It significantly decreases the risk of leaks or breaks in the hydraulic piping, reducing maintenance needs and prolonging the lifespan of the machinery.
By incorporating rotating piping as a standard feature, DEVELON ensures that their mini excavators are more reliable and cost-effective, leading to less downtime and a more efficient workflow. In the long run, this feature can contribute to significant savings in repair and maintenance costs.
Powered by Innovation
DEVELON is a combination of the words ‘Develop,’ and ‘Onwards.’
The new brand name encompasses the direction of HDI to move onward to the future through innovation and its willingness to relentlessly change the world with innovative products and solutions.
Precision at your fingertips with thumb wheel joystick control
DEVELON’s mini excavators feature a thumb wheel joystick, providing operators with precise control and maneuverability.
The thumb wheel joystick allows operators to easily manipulate the excavator’s functions, such as boom, arm, and bucket movements, with a simple thumb motion. This intuitive control system enables precise and accurate operation, enhancing efficiency and productivity on the job site.
The ergonomic design of the thumb wheel joystick ensures operator comfort, reducing fatigue during long hours of operation. With the thumb wheel joystick, operators can work with confidence, achieving optimal control over the mini excavator’s movements and achieving precise results in various excavation tasks.
Do More Using Mini Excavator Attachments
The DX27Z-7 mini excavator (or compact excavator) offers a variety of standard and optional features that make it easy to add attachments and diversify your jobsite capabilities.
This versatile model includes a thumb-ready arm, a hydraulic quick-coupler-ready design and auxiliary hydraulic lines that make it easy to connect hoses when adding hydraulic attachments.
The DX27Z-7 is attachment-ready, so you can do more than dig and take on a variety of jobs using one machine. DEVELON attachments include a bucket, thumb and quick coupler.
Focused on Operator Comfort
All -7 Series mini excavators offer best-top quality air conditioning, all-around visibility and intuitive DEVELON controls — to take productivity to a new level when working on the most challenging jobsites.
The enhanced air conditioning system with excellent airflow, and redesigned seat base with extra layers of insulation take you off the hot seat — and keep you working in comfort all day.
Other features include a standard enclosed cab, fingertip controls, full-color LCD screen, high-illumination LED lamps and common DEVELON controls for operational consistency across all DEVELON machines.
An optional rearview camera is available.

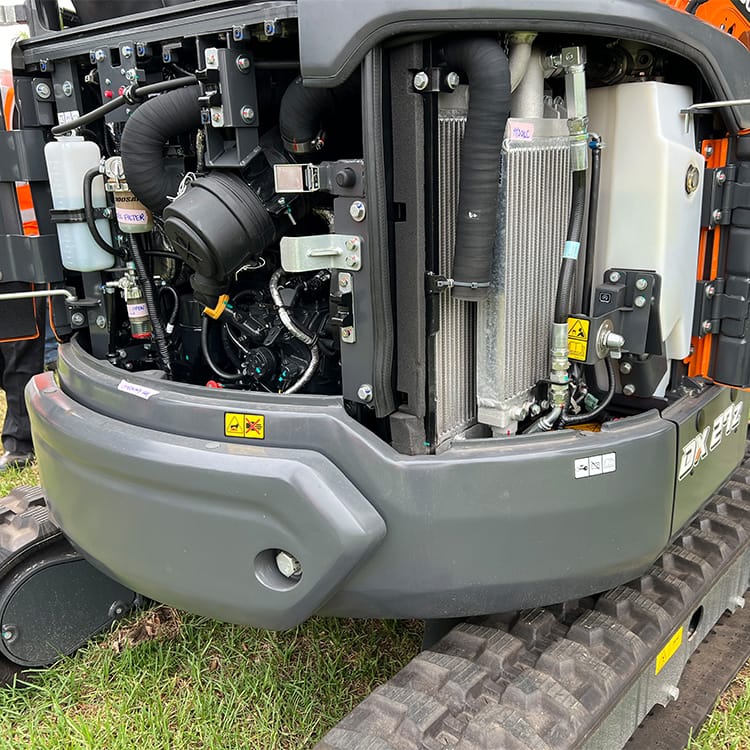

Easy access maintenance
Designed with easy maintenance in mind. From single maintenance access for the major component, to checking the fuel gauge and refueling through the lockable cap, all makes daily maintenance easier.
SPECIFICATIONS
| Operating Weight – Cab: | 2875kg |
| Overall Length (no attachments): | 41860 mm |
| Overall Width (tracks extended): | 1550 mm |
| Overall Height | 4186 mm |
| Ground Clearance: | 217 mm |
| Engine Make / Model: | Doosan / DN1.7 |
| Engine Fuel / Cooling: | Diesel / Water |
| Shoe Width: | 300 mm |
| Track Length: | 1960 mm |
| Tail Swing Radius: | 790 mm |
| Rated Power @ ISO: | 18.4kw/24 hp |
| Travel Speed Low / High: | 2.4 / 4.2 km/h |
| Fuel Capacity: | 47 L |
| Hydraulic Tank Capacity: | 49 L |
| Swing Speed: | 9.3 RPM |
| Standard Boom Length: | 2090 mm |
| Standard Arm Length: | 1100 mm |
| Arm Digging Force: | 1.6 Tonne |
| Bucket Digging Force: | 2.22 Tonne |
| Max Digging Depth: | 4385 mm |
| Max Digging Radius: | 4520 mm |
