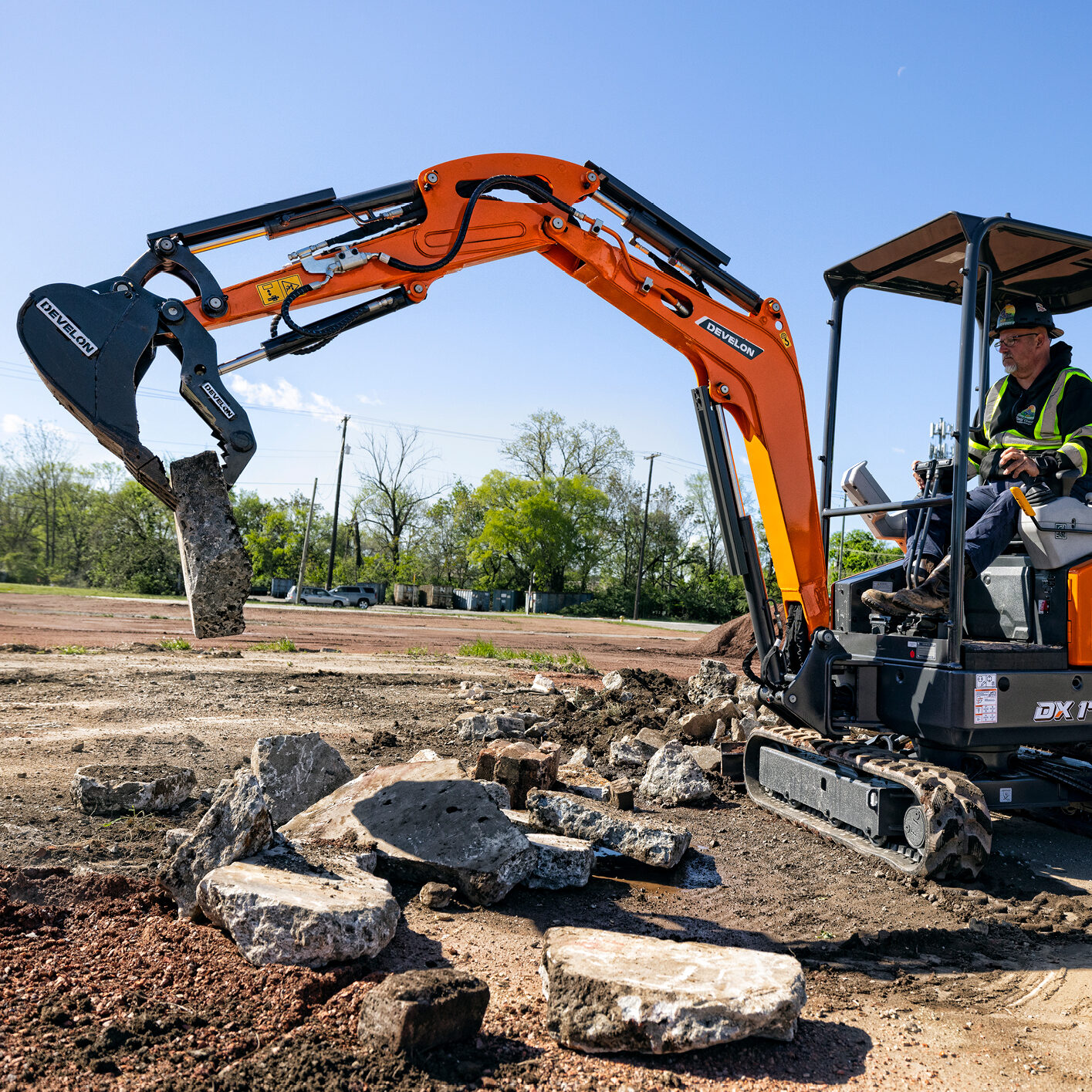

DX19Z-7B Mini Excavator
Powerful Performance Ideal for Tight Access Job Sites
Quick Specs
Engine
Yanmar
Power
14 hp
Weight - Cab
1995 kg
Max Dig Dept
2180 mm
Pocket-Sized Power
Our smallest mini excavator brings precision and performance to the tightest corners of your job site.
With its retractable tracks and collapsible dozer blade, the do-it-all DEVELON DX19Z with a 14 hp engine puts you in perfect position, no matter the task.
A thumb-ready arm and flush-face couplers for fast hydraulic hose connections give you attachment versatility.
Boom swing function for versatile work
Expand your capabilities with the DX19’s boom swing function.
This feature allows you to work in narrow areas and around obstacles with exceptional precision.
Manoeuvre the boom horizontally, giving you the flexibility to reach confined spaces and achieve optimal positioning for various tasks. With the DX19’s boom swing function, versatility is at your fingertips.
Powered by Innovation
DEVELON is a combination of the words ‘Develop,’ and ‘Onwards.’
The new brand name encompasses the direction of HDI to move onward to the future through innovation and its willingness to relentlessly change the world with innovative products and solutions.
Rapid and outstanding performance with ease of control
Whether you’re digging, lifting, or loading, the DX19’s high lifting and digging forces ensure that no task is too challenging.
Engineered to deliver powerful and precise hydraulic functions, this advanced system ensures optimal efficiency, smoother operation, and enhanced control.
From digging to lifting, the DX19 provides reliable hydraulic power for a wide range of tasks, boosting your productivity and reducing operating time.
Variable track width for enhanced stability
Experience improved stability and versatility with the DX19’s variable track width.
Adjust the track width from 950mm to 1,360mm, enabling you to adapt to different terrains and applications.
Whether you need to increase stability for demanding digging or reduce width for narrow access, the DX19’s variable track width ensures optimal performance and enhanced efficiency on any job site
Zero-tail swing for confined spaces
Navigate tight job sites with ease thanks to the DX19’s zero-tail swing design.
With its compact footprint and zero overhang at the rear, this excavator can work efficiently in narrow spaces without compromising on performance.
Say goodbye to concerns about accidental collisions or damage, as the DX19’s zero-tail swing ensures maximum manoeuvrability and safety, allowing you to tackle any project with confidence.
Easy access maintenance
Designed with easy maintenance in mind. From single maintenance access for the major component, to checking the fuel gauge and refueling through the lockable cap, all makes daily maintenance easier.
SPECIFICATIONS
| Operating Weight – Canopy: | 1995 kg |
| Overall Length (no attachments): | 3476 mm |
| Overall Width (tracks extended): | 950 (1360) mm |
| Overall Height: | 2360 mm |
| Ground Clearance: | 419 mm |
| Engine Make / Model: | Yanmar / 3TNV70 |
| Engine Fuel / Cooling: | Diesel / Water |
| Track Width: | 230 mm |
| Track Length: | 1612 mm |
| Rear Swing Clearance: | 1009 mm |
| Rated Power @ ISO: | 10.3 kW / 14 hp |
| Travel Speed Low / High: | 2.0 / 3.7 km/h |
| Fuel Capacity: | 20 L |
| Hydraulic Tank Capacity: | 16 L |
| Swing Speed: | 9.6 RPM |
| Standard Boom Length: | 1725 mm |
| Standard Arm Length: | 950 mm |
| Arm Digging Force: | 10370 Nm |
| Bucket Digging Force: | 20835 Nm |
| Max Digging Depth: | 2385 mm |
| Max Digging Height: | 3573 mm |
