DX100W Mini Excavator
Top-Class Operator Comfort and Improved Fuel Efficiency.
Quick Specs
Engine
Develon D34 Stage V
Power
100 hp
Weight
11331 kg
Max Dig Dept
3960 mm
Compact Power, Massive Productivity

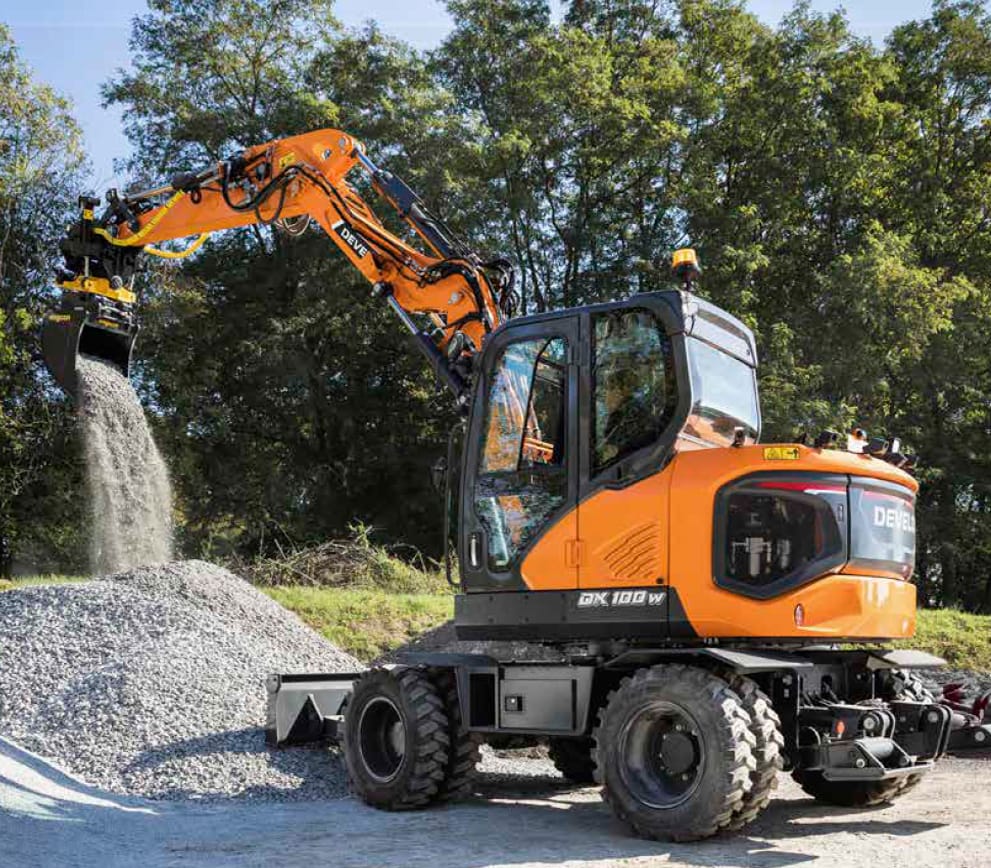

The DEVELON DX100W-7 mini excavator is the perfect tool for productivity. This 11t excavator with a 100-hp engine can navigate tight spaces easily thanks to its 360-degree swing capability and articulated boom.
Multiple steering and power modes give you complete control, and its fast travel speed makes it easy to transport across job sites.
Get more done with the DX100W-7.
Powered by Innovation
DEVELON is a combination of the words ‘Develop,’ and ‘Onwards.’
The new brand name encompasses the direction of HDI to move onward to the future through innovation and its willingness to relentlessly change the world with innovative products and solutions.
Unmatched Maneuverability for Rail and Urban Worksites
Urban and rail projects demand agility. The DX100W-7 mini excavator delivers:
- Unmatched Maneuverability: Three steering modes (2-wheel, 4-wheel crab, 4-wheel round) tackle any tight spot.
- Compact Power: Navigate confined spaces without sacrificing performance
Experience the difference on your next project.
Top Performance and Fuel Efficiency
The DX100W-7 mini excavator delivers top performance with minimal environmental impact.
- Clean Power: Stage V engine with advanced emissions control.
- Fuel Smart: Multiple power/work modes, auto-idle, & efficient turbocharger.
- Low Maintenance: DPF maintenance-free for 5000 hours
A greener, more productive choice for your job site.
Built Tough for the Long Haul
The DX100W-7 is built to last.
- Rugged Construction: Reinforced frame, boom, and arm for maximum durability.
- Enhanced Reliability: Improved driveline, braking, and filtration systems for less downtime.
- Operator Comfort: Smoother travel and reduced maintenance needs.
Ready to tackle your toughest jobs, day in and day out.
Independent Stabilisers
The DX100W-7’s versatile dozer and stabilizer design enhances performance, protects surfaces, and boosts resale value with its robust construction and ease of transport.
2 Piece Articulated Boom
The DX100W-7’s two-piece articulated boom enables this small wheeled excavator to reach farther and achieve greater digging depth and height.
SPECIFICATIONS
| Operating Weight: | 11,331 kg |
| Overall Length (transport): | 7281 mm |
| Overall Width: | 2450 mm |
| Overall Height: | 3011 mm |
| Ground Clearance: | 328 mm |
| Engine Make / Model: | Develon D34 |
| Engine Fuel / Cooling: | Diesel / Water |
| Wheel Base: | 2240 mm |
| Tread With: | 1944 mm |
| Rear Swing Radius: | 1600 mm |
| Rated Power @ ISO: | 75 kW / 100 hp |
| Travel Speed Low / High(2nd gear): | 12.9 / 37.4 km/h |
| Fuel Capacity: | 160 L |
| Hydraulic Tank Capacity: | 140 L |
| Swing Speed: | 10.5 RPM |
| Standard Arm Length: | 2250 mm |
| Standard Arm Weight: | 242 mm |
| Arm Digging Force: | 36500 Nm |
| Bucket Digging Force: | 58600 Nm |
| Max Digging Depth: | 4245 mm |
| Max Digging Height: | 8265 mm |
