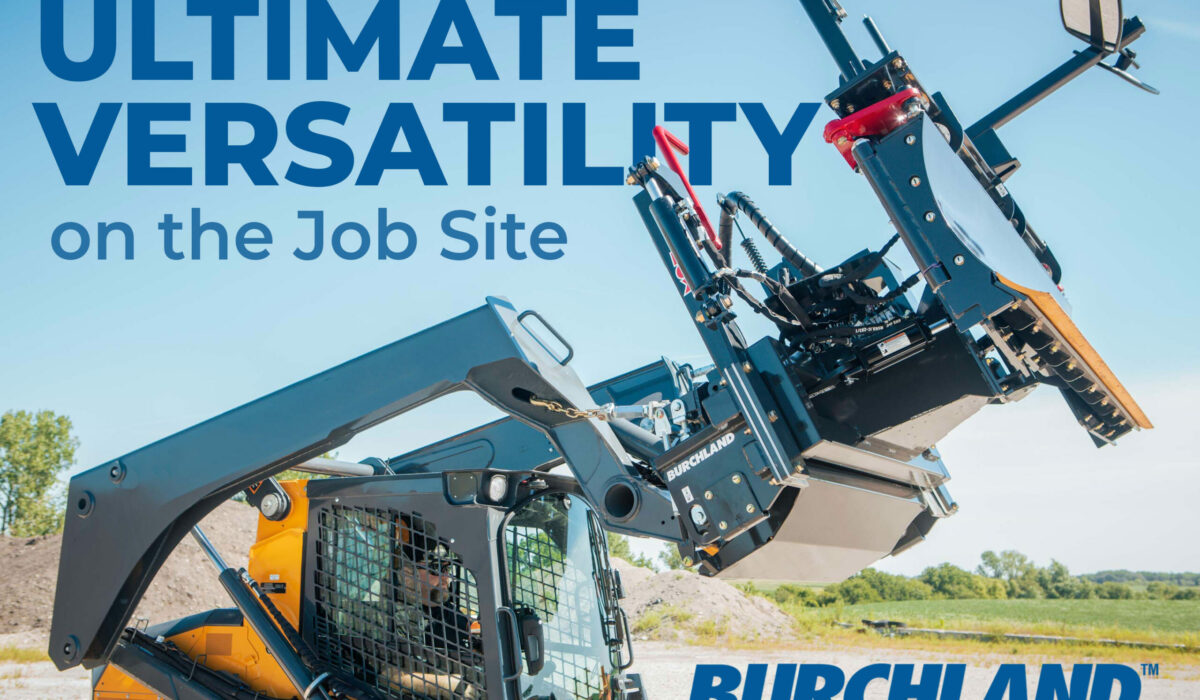

Burchland LGX Laser Grader
Precise grading with lasers, GPS, total stations, and sonic tracers.
Quick Specs
Machine/s
SSL / CTL
Weight
1277kg+
Width
2276mm+
Length
1315mm

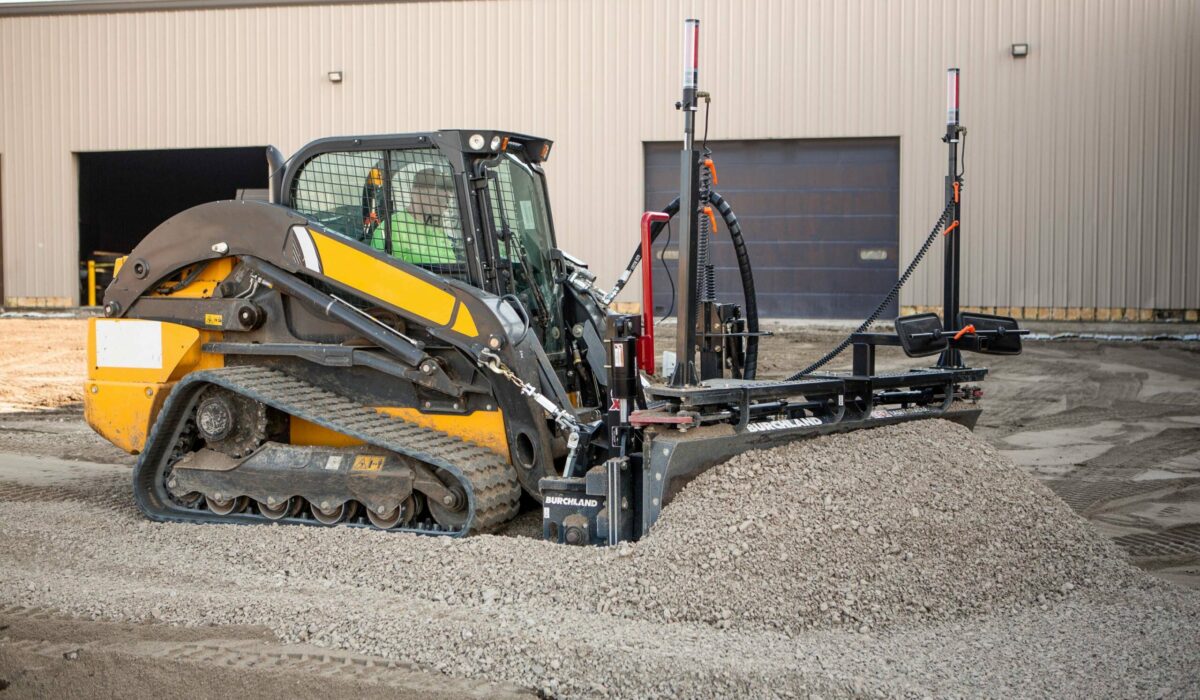

The LGX Burchland Laser Grader comes ready to produce precise grading with lasers, GPS, total stations, and sonic tracers. This system allows the operator to push fill into corners and changes in elevation, all while maintaining a precise grade.
Also available in the Burchland attachments range: AGT Auto Grading Soil Trimmer.
Precision Grading Made Easy

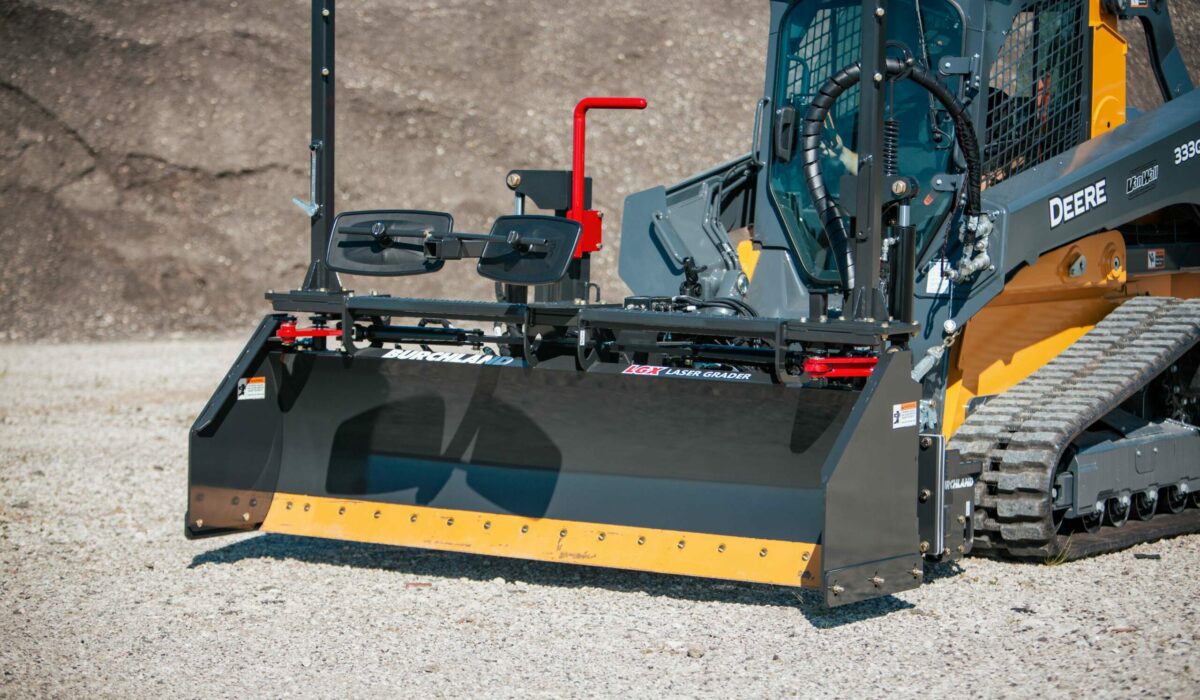

The LGX Burchland Laser Grader is a versatile precision grader attachment that delivers a precise grade on many different styles of job sites. This innovative attachment can be configured in many different ways all from the operator’s seat. From parking lots and highways to athletic fields and driveways, you’ll be able to create an extremely smooth finished grade with this simple, highly durable laser grader.
- Universal skid steer mount

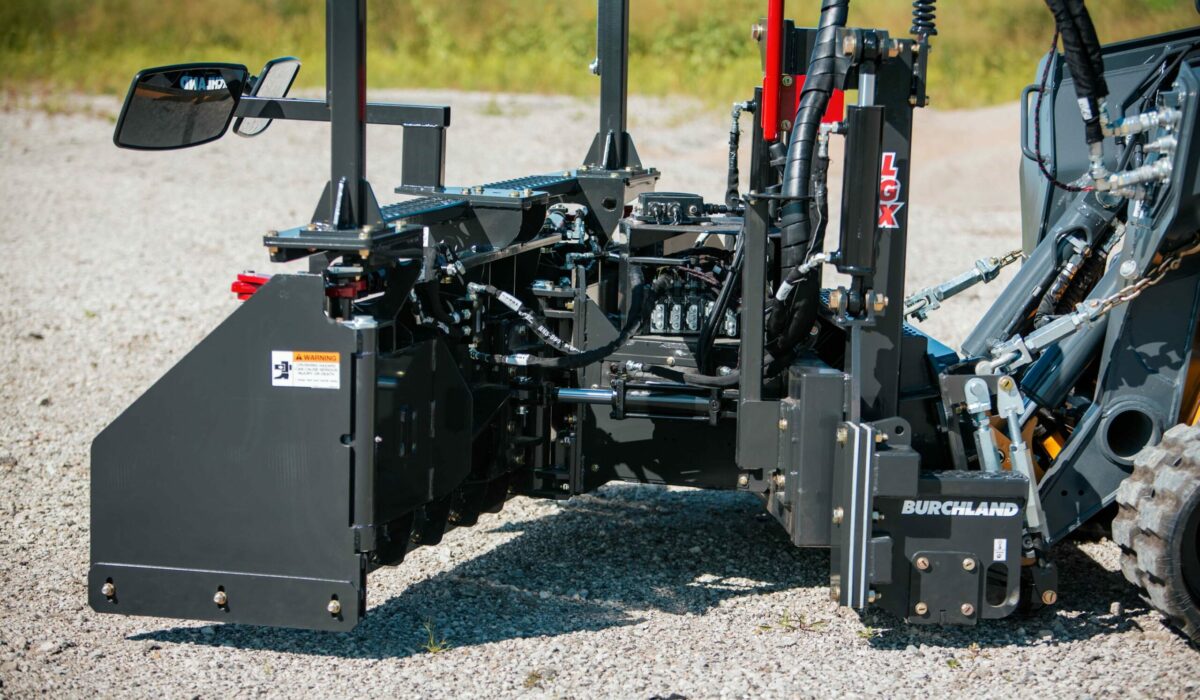

- Mid-mounted stabilizing skid plate

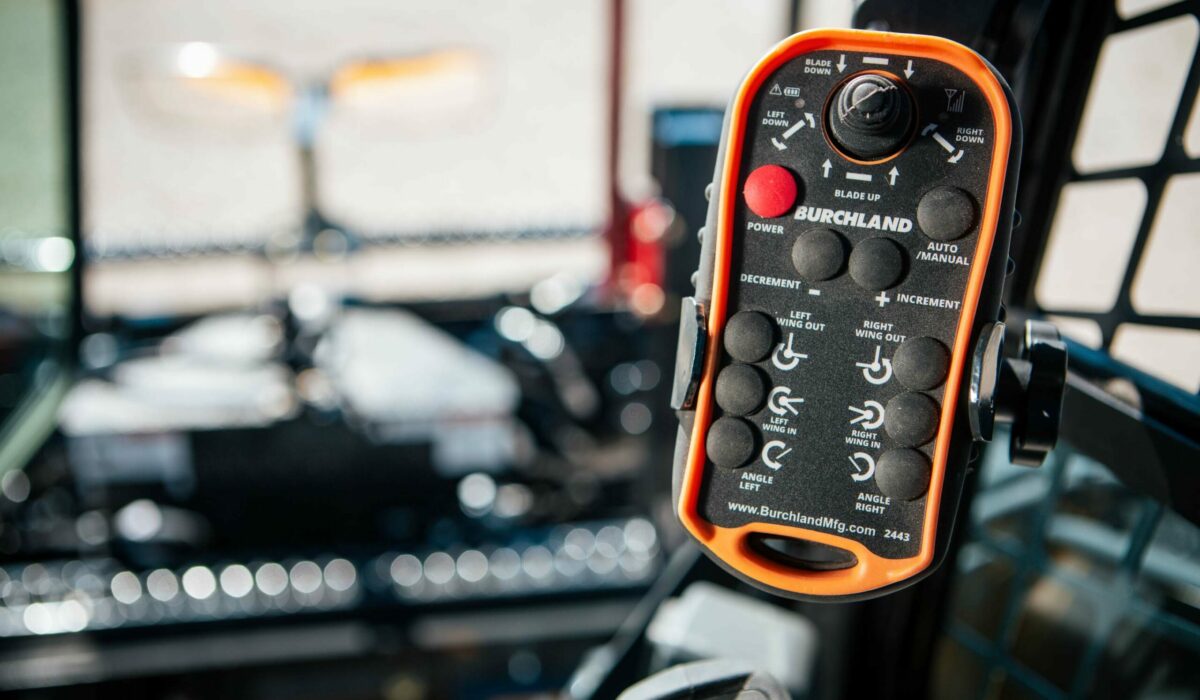

- Can be operated in auto or manual mode
- 270 degree hydraulic wing rotation
- Laser, GPS, Total Station, Sonic tracer and string line capable

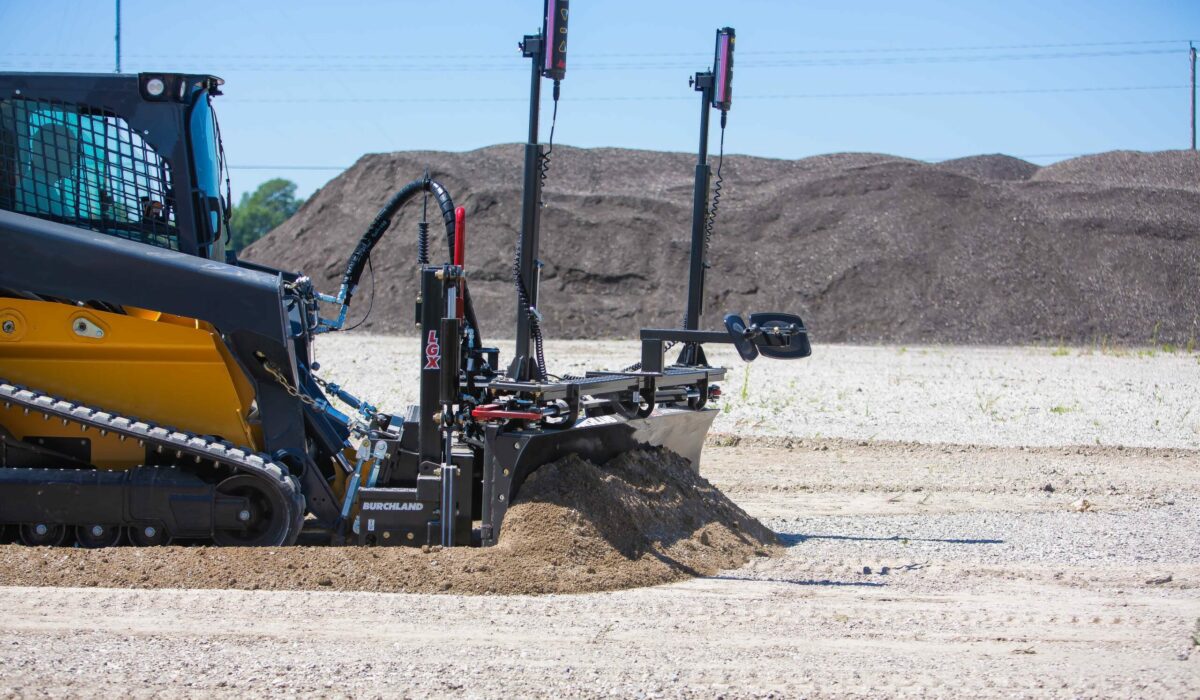

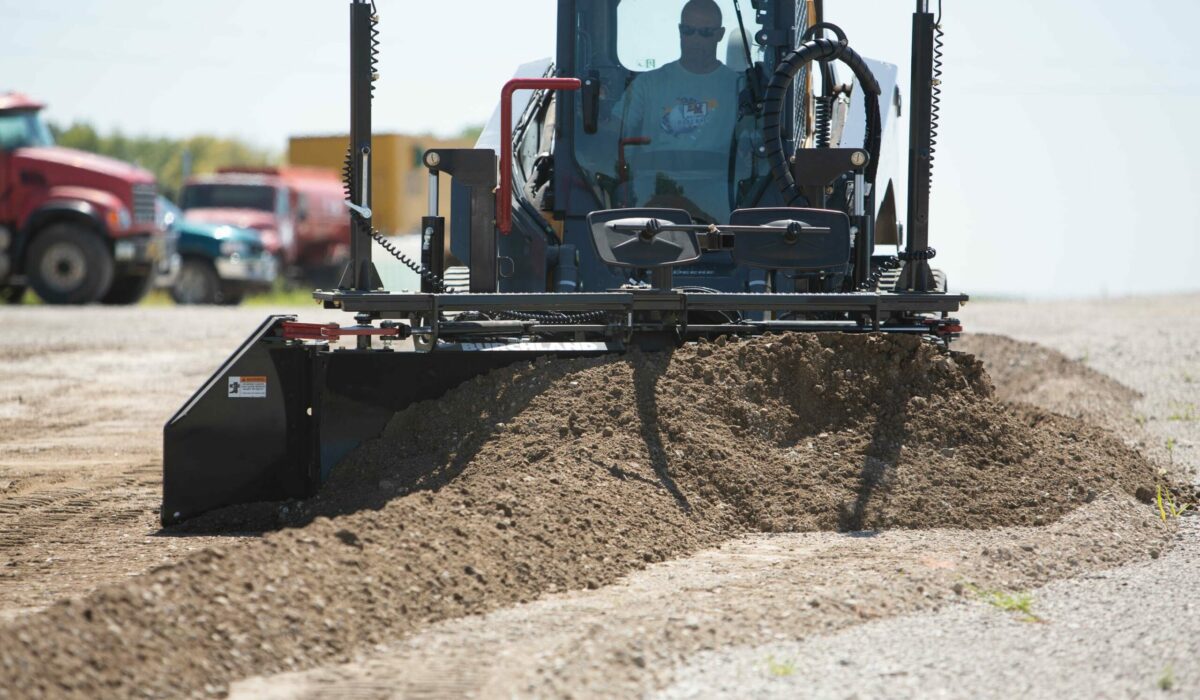

The LGX Burchland Laser Grader comes ready to produce precise grading with lasers, GPS, total stations, and sonic tracers. This system allows the operator to push fill into corners and changes in elevation, all while maintaining a precise grade. This highly durable skid steer laser grader can be found preparing sub-grade for parking lots, streets, highways, athletic fields, driveways, and any other job that requires a precise grade. The versatility in control systems also allows the owner to purchase any of the major brand machine controls and have it performed with great detail.
The benefit of our Skid Steer Laser Grader is its ability to save time and labor by not having to manually fill corners by hand, like other competitor models. The LGX laser grader is a reliable piece for allowing maximum production, which makes this a very desirable skid steer grader attachment. The unique design will give the operator exceptional control of the grade and the multiple configurations available with the attachment.

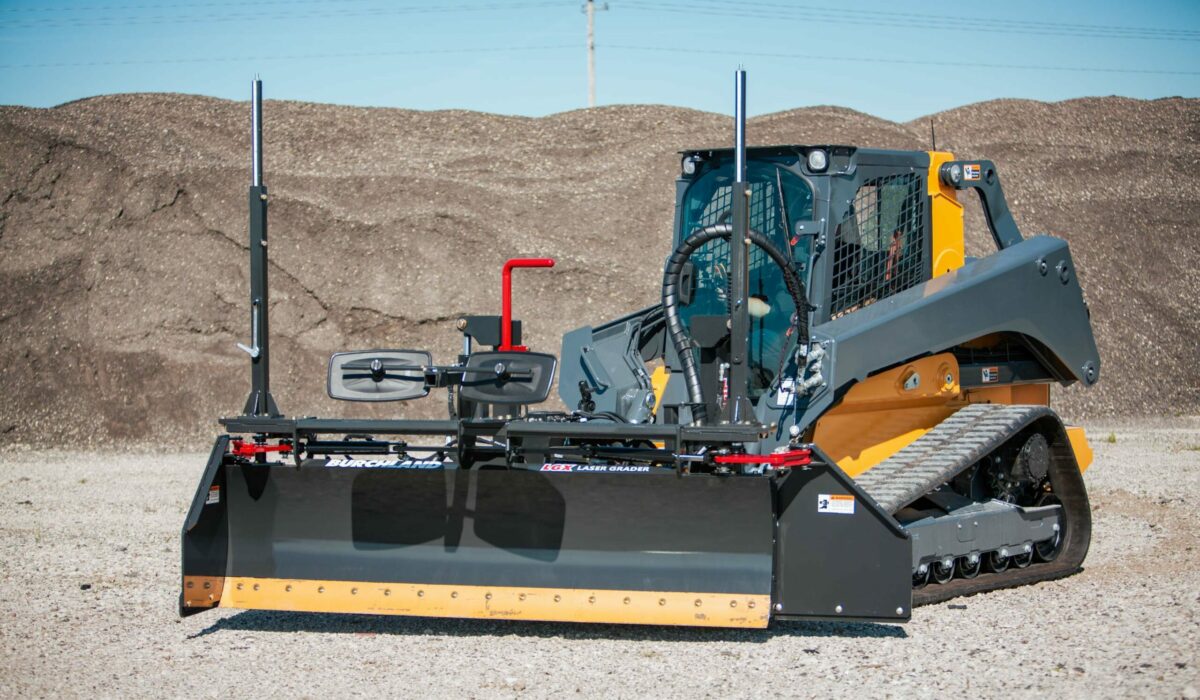

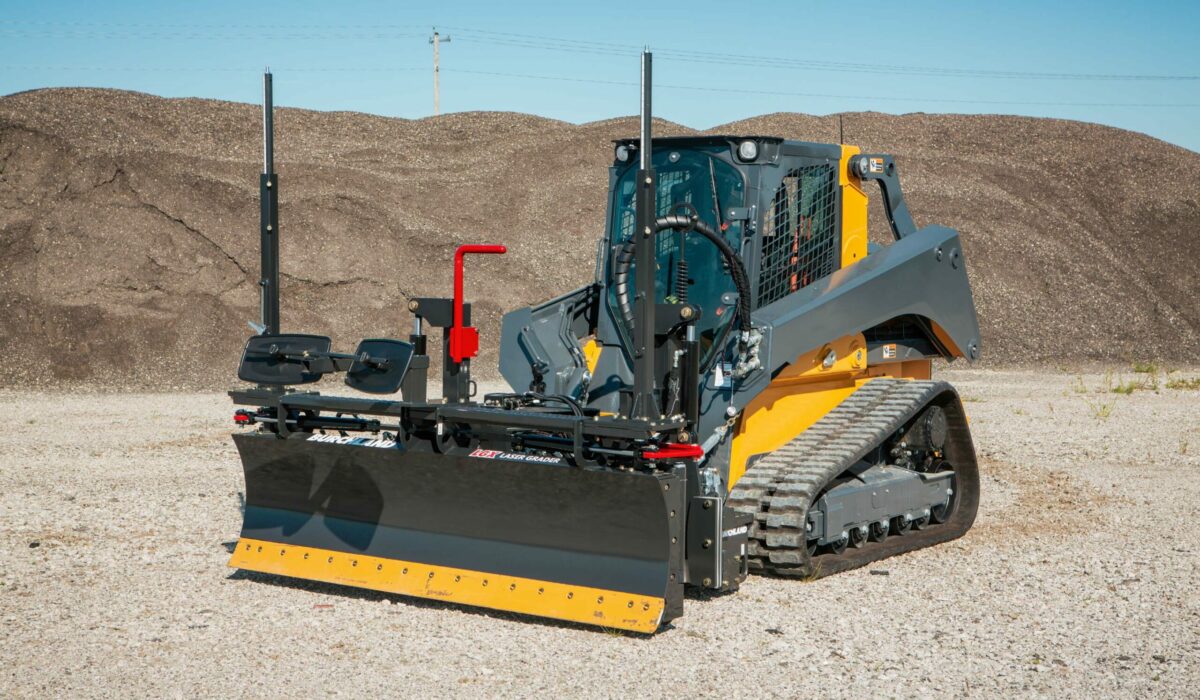

With this grader, you will be able to independently or hydraulically rotate the endplates, from folded directly behind the blade to straight forward. This will create a rotation that will transform the grader blade to a box blade. The hydraulic valve system will also allow you to adjust the box blade, which will create a smooth and accurate performance through the toughest of environments.
SPECIFICATIONS
| Spec: | 7ft Blade Width | 7.5ft Blade Width | 8ft Blade Width |
| Weight: | 1277kg | 1337kg | 1361kg |
| Height (ground to top of rolled blade): | 622mm | 622mm | 622mm |
| Length (back to front of blade): | 1315mm | 1315mm | 1315mm |
| Width: | 2276mm | 2428mm | 2581mm |
| Rotated Blade Cut Width: | 1393mm | 2073mm | 2210mm |
| Roller Width: | 1676mm | 1676mm | 1676mm |
| Centre of Mass (from back of hitch): | 686mm | 711mm | 686mm |
Note: specifications are indicative only and subject to change or variation.
SAVE TIME ON LABOUR
By not having to manually fill corners by hand.
EXCEPTIONAL CONTROL
Of the grade and the multiple configurations.
MULTIPLE USE CASES
Transform the grader blade to a box blade quickly.
CUSTOMER REVIEWS
“When we first got the grader it was really appealing because we could hook it onto a skid loader and get in tight spots and more confined areas that we wouldn’t get into with a dozer or a bigger machine.
The grader is pretty unique for us because we do a variety of different projects ranging from roads to parking lots. The grader is accurate within a quarter inch and it really takes out a lot of the fine work that you would do with a labourer.”
– Trevor Drish | Drish Construction
“We have Cat, John Deere, Bobcat and if we don’t own them, we may be renting, but we’re not locked into any certain brand of equipment. You can attach them to any brand.
I would recommend Burchland, what I notice is what I look at in all equipment is how they’re built if they’re going to last.”
– Ron Mockelman | Hawkins Construction
