Burchland AGT Auto Grading Soil Trimmer
Cut grade to a precise elevation with a smooth finish in hard sub-base materials.
Quick Specs
Machine/s
SSL / CTL
Weight
1542kg
Width
2847mm
Height
1601mm
The AGT allows contractors to cut grade to a precise elevation with a smooth finish in hard sub-base materials. If you need a precise yield on your concrete, asphalt and sub-base, this is the grading attachment for you.
Also available in the Burchland attachments range: LGX Laser Grader.
Trim, Grade and Roll at the Same Time!

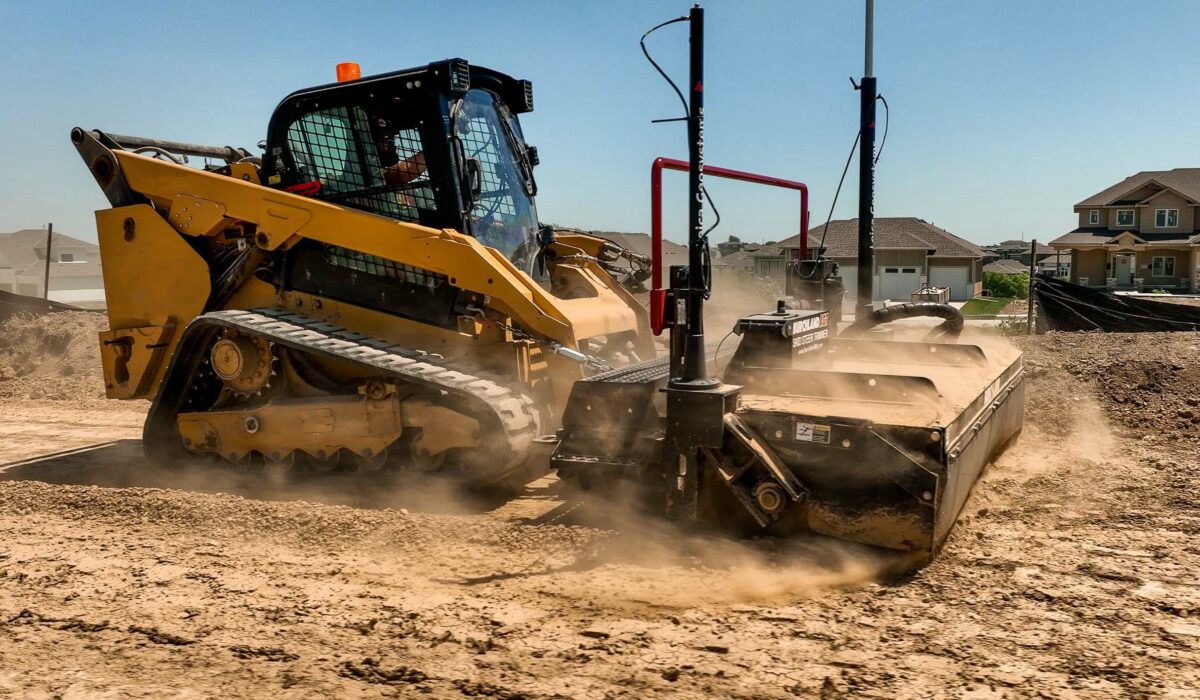

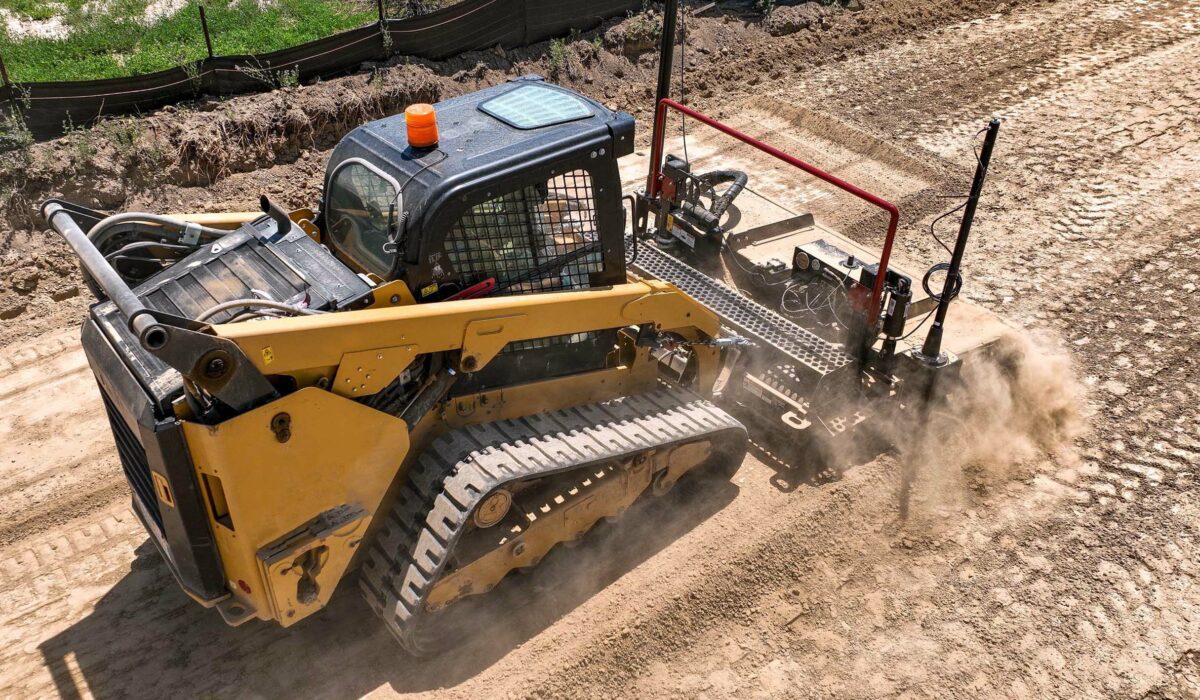

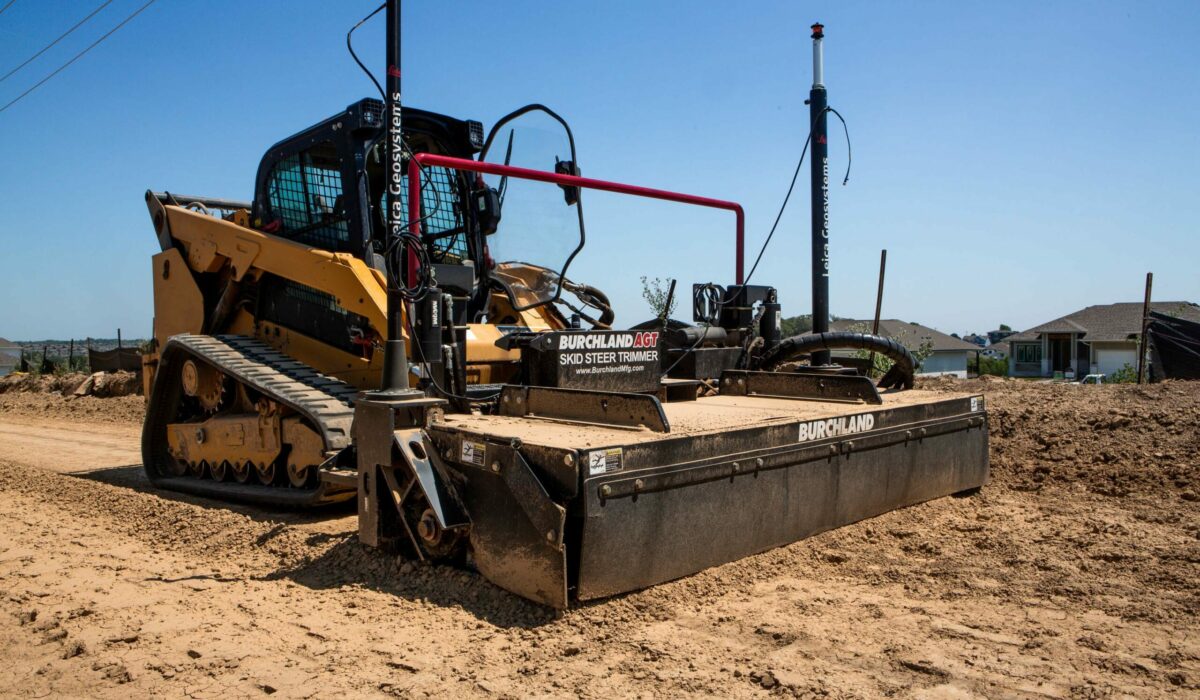

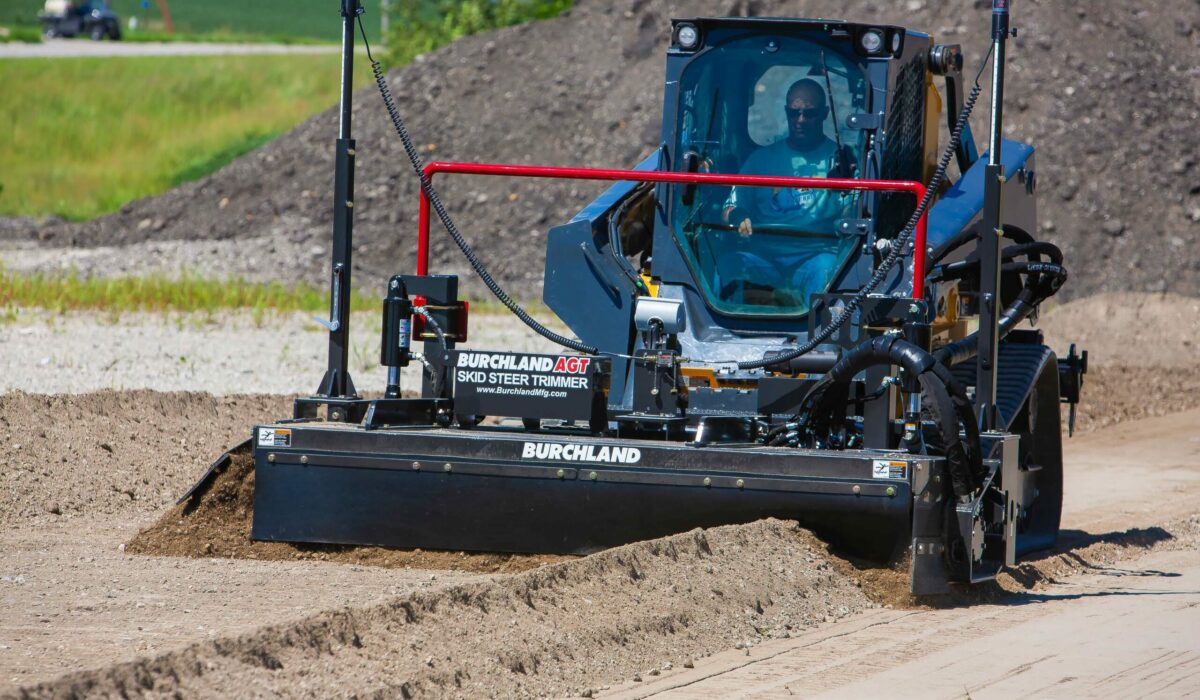

Burchland’s Auto Grading Trimmer (AGT) is a skid steer mounted trimmer created for precision grading in hard materials on any paving project. The skid steer attachment is ideal for trimming sub-grade soil under building pads, parking lots, curb and gutter, sidewalks, trails and roads. Its size makes it convenient to use on small and large job sites. Mobilization is a breeze with this skid steer grading attachment.
The AGT allows contractors to cut grade to a precise elevation with a smooth finish in hard sub-base materials. Where rock sub-base is required, use the trimmer once to grade the soil and again to cut the compacted rock base to the correct elevation. By using this method, contractors get a very precise yield on both rock and concrete or asphalt. Minimize your material usage to maximize profit!

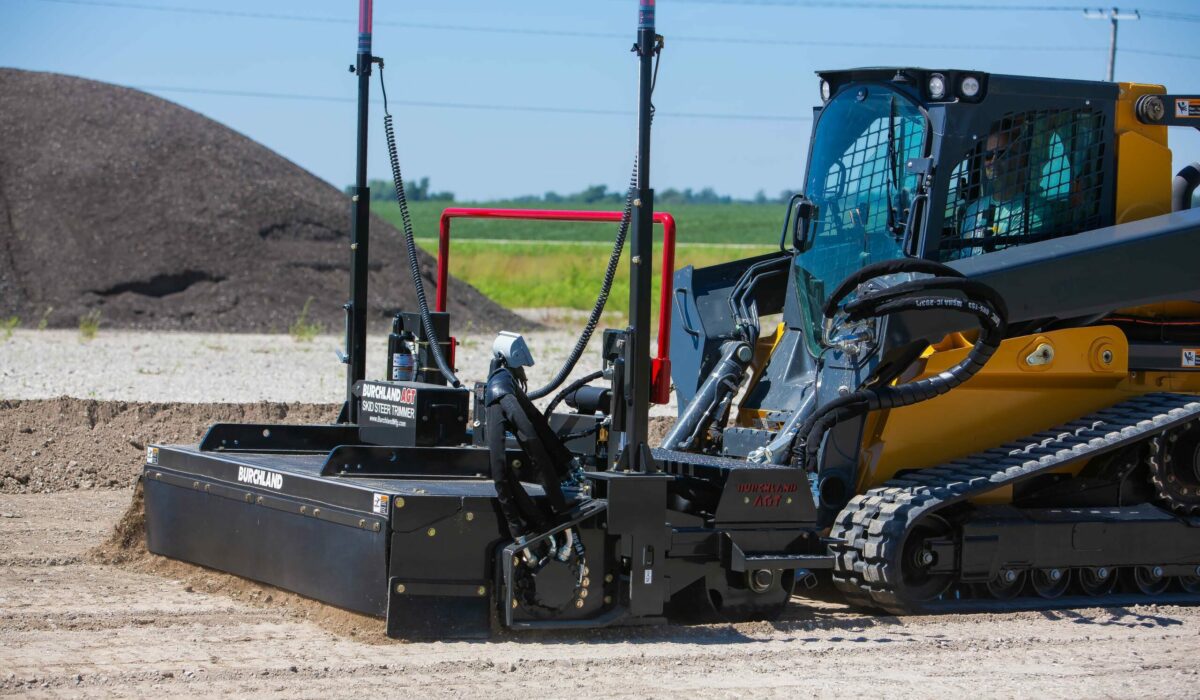

The AGT skid steer trimmer is compatible with all brands of automated machine controls and functions with laser receivers, GPS, Robotic Total Station, sonic and string line sensors. The trimmer can be operated in manual mode as well.

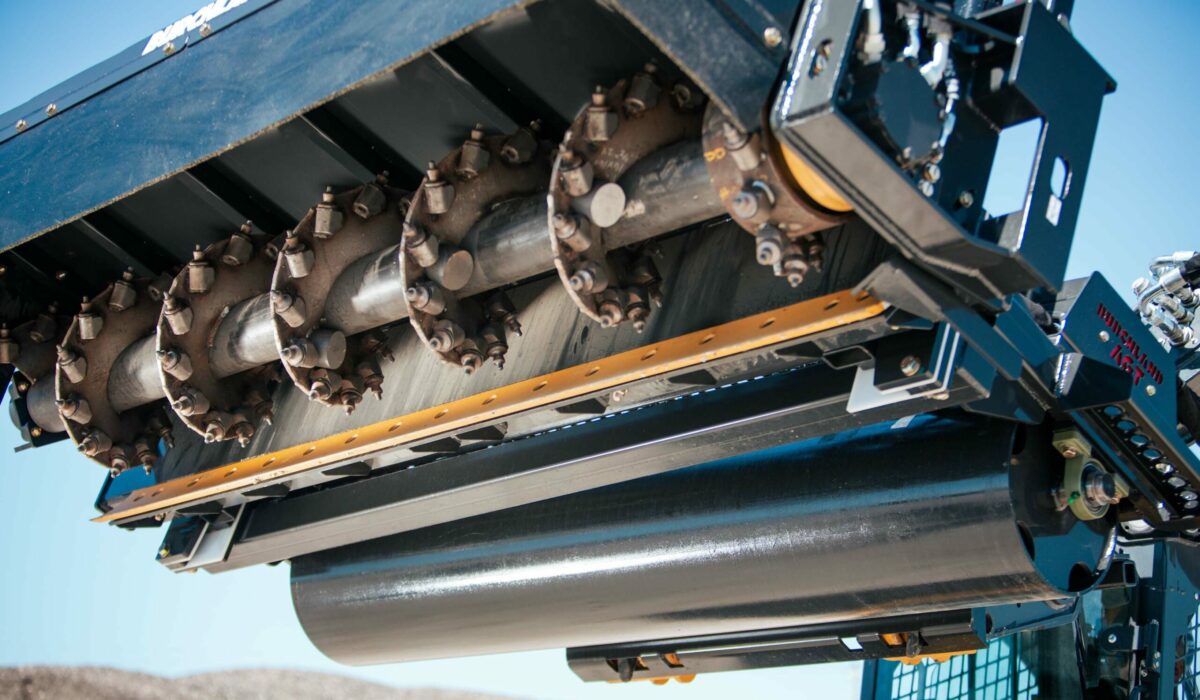

The Burchland AGT’s success stems from its 16-inch OD trimmer rotor that cuts an 8 foot wide path. The rotor is built with replaceable, carbide-tipped cutting teeth and 1/2 inch thick flighting that windrows the trimmed material to one side. The trimmer head is turned by a direct drive, large displacement hydraulic motor. Following a simple design, the AGT has no gearboxes or chain drives to maintain.The Burchland AGT’s success stems from its 16-inch OD trimmer rotor that cuts an 8 foot wide path. The rotor is built with replaceable, carbide-tipped cutting teeth and 1/2 inch thick flighting that windrows the trimmed material to one side. The trimmer head is turned by a direct drive, large displacement hydraulic motor. Following a simple design, the AGT has no gearboxes or chain drives to maintain.

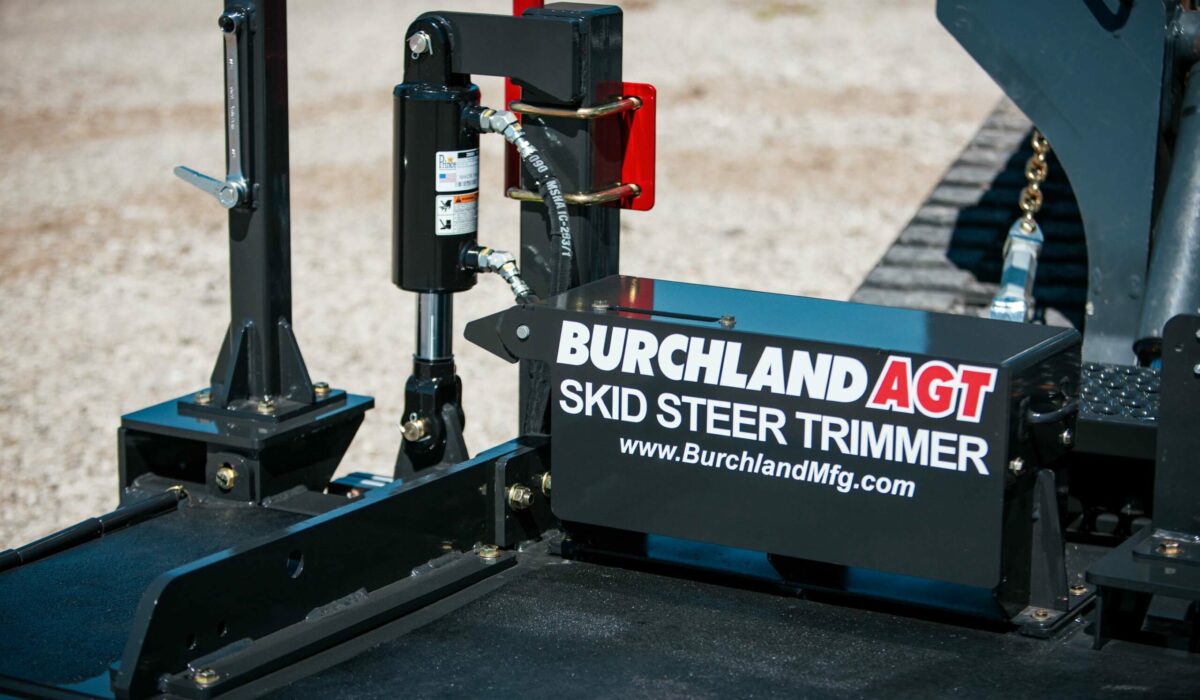

Behind the trimmer rotor is a grader blade edge that screeds off material and provides a smooth finish. The rotor and grader blade are moved up and down with two hydraulic cylinders to precisely follow the correct surface elevation. The rotor and grader blade are angled 5 degrees from the direction of travel to help ensure a smooth surface finish.
Another important feature of the AGT skid steer trimmer is the 16-inch diameter smooth drum roller that smooths out and seals the grade surface. The roller rides on the finished grade and acts as a stabilizer removing any movement from the skid steer loader arms. This helps the skid steer trimmer achieve a precise finish grade.
To provide the best performance, the Burchland AGT requires a high flow skid steer and a separate case drain line. Contact us if your skid steer does not have a factory installed auxiliary case drain line.
Universal Fit
Fits any hitch system on tractors and skid loaders.
Precise Grading
Surface grade precisely with a 3-D CAD surface file.
Perfectly Smooth
Drum roller that smooths the imperfections.
SPECIFICATIONS
| Spec: | AGT |
| Weight: | 1542kg |
| Height: | 1601mm |
| Cut Width: | 2438mm |
| Width: | 2847mm |
| Rotated Blade Width (5 deg): | 2057mm |
| Rotor Speed: | 210 RPM @ 132.5 LPM Flow |
| Modes: | Manual or Automatic |
Note: specifications are indicative only and subject to change or variation.
CUSTOMER REVIEWS
“Heavy built, reliable and a big part of our cost savings strategy.”
– Trevor Drish | Drish Construction
“We’ve been running the Burchland Trimmer since the summer of 2018. We run the trimmer on our curb and gutter jobs to get the grade correct before we pour curbs.
It makes our slip form curb process much easier. It’s an awesome monster!”
– Chris Hannon | Innovative Curbs
“We have been using the Burchland AGT skid steer trimmer to accurately fine grade hard clay and 1” minus material that a motor grader has difficulty cutting.
Our finished subgrade results in a compacted, smooth surface that our concrete crews can set forms directly on the subgrade and pave with no further height adjustments or fine grading.
We’ve completed these jobs with less than 5% overrun on concrete. With the labor and material savings experienced in our first year with the trimmer, we’re looking forward to expanding its use this upcoming season.
Utilizing the total station control, this versatile trimmer works well for both short rehab street projects and parking lots!”
– Matt VanderPol | VanderPol Excavating
